Wuxi Shangjiang Electromechanical air shower is a device to prevent polluted air from entering the clean area. The principle is to use high speed clean air to remove the dust attached to the surface of personnel entering the clean room. At the same time, since the two doors of the air shower are not opened at the same time, it can also act as an airlock to control the external polluted air entering the clean area. MASDEFNED comes in a number of families, and the operating procedures are essentially the same.
It is widely used in biological room, pharmaceutical factory, hospital, food processing industry, electronic factory and other places that need air purification.

Technical indicators

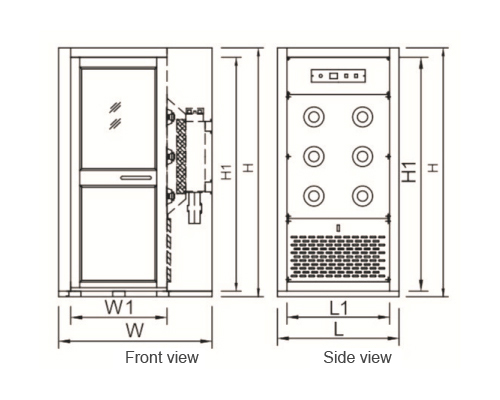

Type	MAS-1140-1	MAS-1140-2	MAS-1140-3
External size（W×L×H）（mm）	1140×1000×2045	1140×2000×2045	1140×3000×2014
Internal size（W1×1L×H1）（mm）	790×920×1890	790×1920×1890	790×2920×1890
Wind speed（m/s）	20-24	20-24	20-24
Air change times (times/hour)	460	440	410
Number of air nozzles	6	12	18
Consumed power（kw）	0.4	0.8	1.2
Power supply voltage（V）	220	220	220
High efficiency filter size（mm） Number Filtration efficiency	610×610×120	610×610×120	610×610×120
	3pcs	3pcs	3pcs
	99.995%@0.3μm	99.995%@0.3μm	99.995%@0.3μm
Primary filter efficiency	90%	90%	90%
Primary filter material	Washable non-woven polyester	Washable non-woven polyester	Washable non-woven polyester
Enclosure	Electrolytic plate spray	Electrolytic plate spray	Electrolytic plate spray

Technical indicators

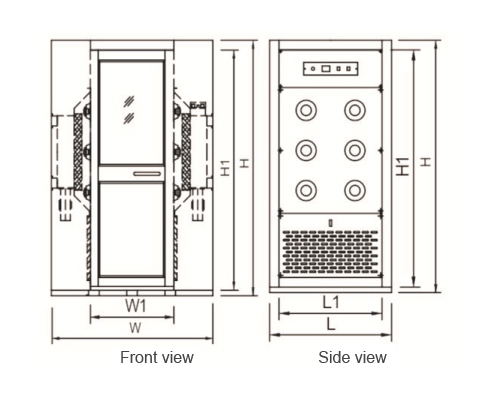

Type	MAS-1290-1	MAS-1290-2	MAS-1290-3
External size（W×L×H）（mm）	1290×1000×2045	1290×2000×2045	1290×3000×2014
Internal size（W1×1L×H1）（mm）	790×920×1890	790×1920×1890	790×2920×1890
Wind speed（m/s）	20-24	20-24	20-24
Air change times (times/hour)	920	880	82
Number of air nozzles	12	24	36
Consumed power（kw）	0.8	1.6	2.4
Power supply voltage（V）	220	220	220
High efficiency filter size（mm） Number Filtration efficiency	610×610×120	610×610×120	610×610×120
	2pcs	4pcs	6pcs
	99.995%@0.3μm	99.995%@0.3μm	99.995%@0.3μm
Primary filter efficiency	90%	90%	90%
Primary filter material	Washable non-woven polyester	Washable non-woven polyester	Washable non-woven polyester
Enclosure	Electrolytic plate spray	Electrolytic plate spray	Electrolytic plate spray

Technical indicators

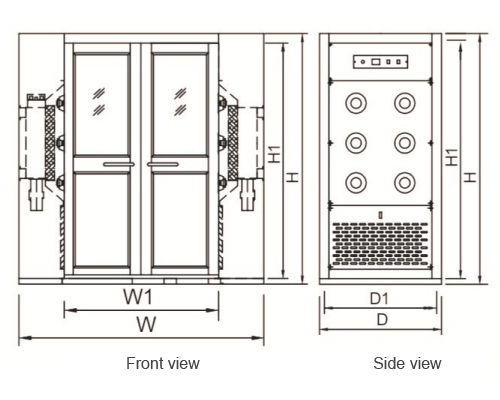

Type	MAS-1760-1	MAS-1760-2	MAS-1760-3
External size（W×L×H）（mm）	1760×1000×2045	1760×2000×2045	1760×3000×2014
Internal size（W1×1L×H1）（mm）	1260×920×1890	1260×1920×1890	790×2920×1890
Wind speed（m/s）	20-24	20-24	20-24
Air change times (times/hour)	580	550	520
Number of air nozzles	12	24	36
Consumed power（kw）	0.8	1.6	2.4
Power supply voltage（V）	220	220	220
High efficiency filter size（mm） Number Filtration efficiency	610×610×120	610×610×120	610×610×120
	2pcs	2pcs	3pcs
	99.995%@0.3μm	99.995%@0.3μm	99.995%@0.3μm
Primary filter efficiency	90%	90%	90%
Primary filter material	Washable non-woven polyester	Washable non-woven polyester	Washable non-woven polyester
Enclosure	Electrolytic plate spray	Electrolytic plate spray	Electrolytic plate spray
